Acousticabs Industrial Noise Control

Acoustic Enclosures and Control Rooms - Acoustic Control Rooms and Pulpits

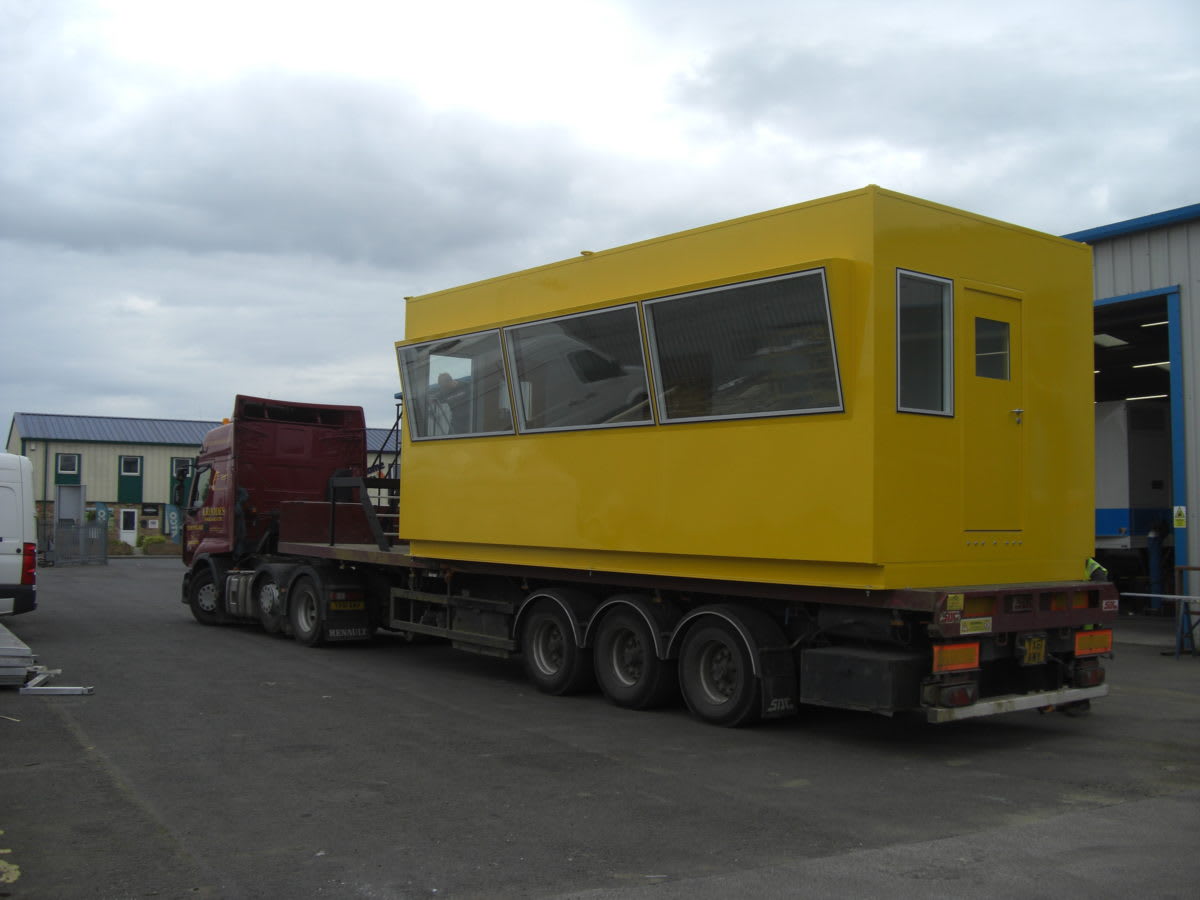

AEC2-2 - Acoustic Control Room for a Steel Pipe Mill - fitted out and on its way to provide a plug-in solution.

Examples

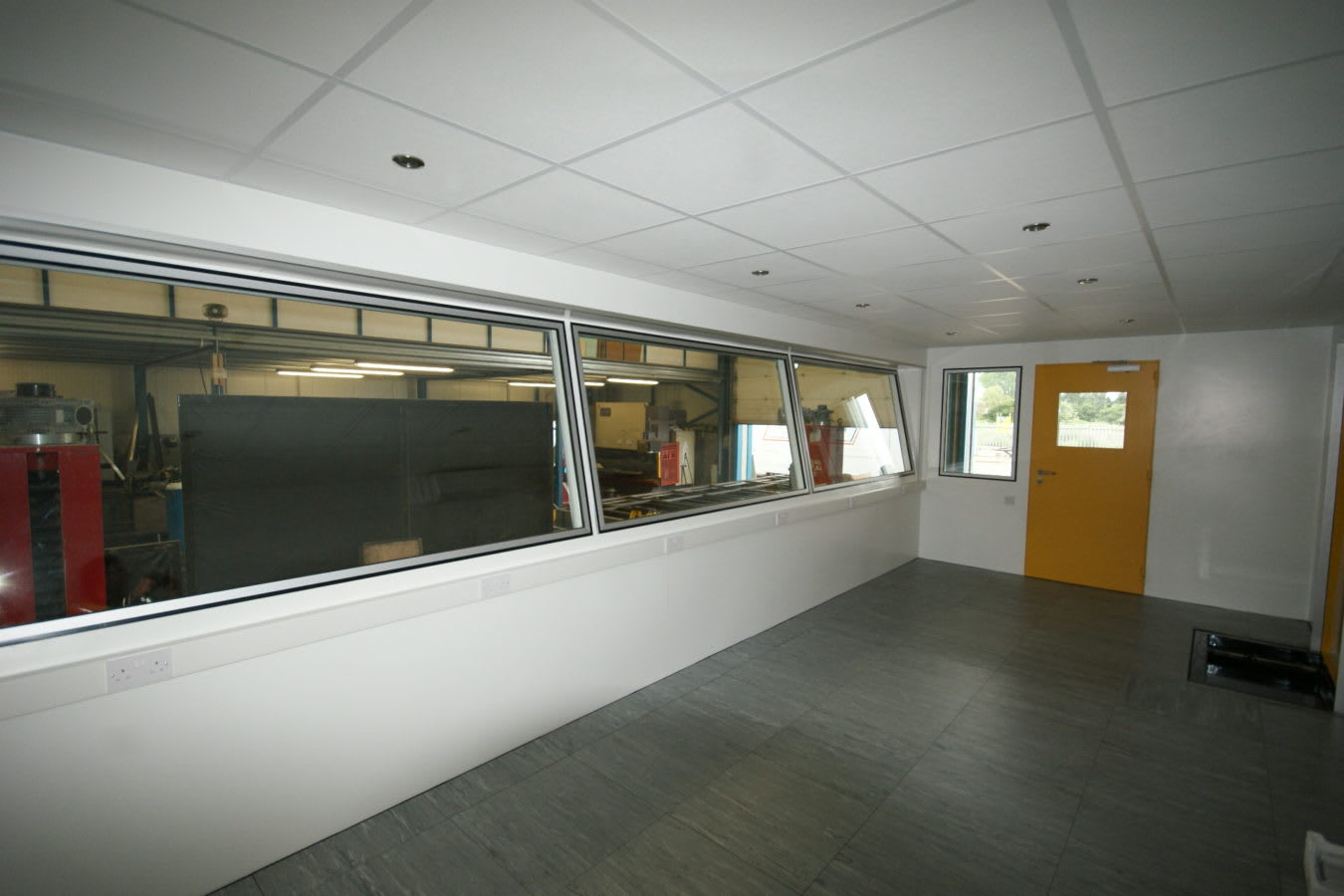

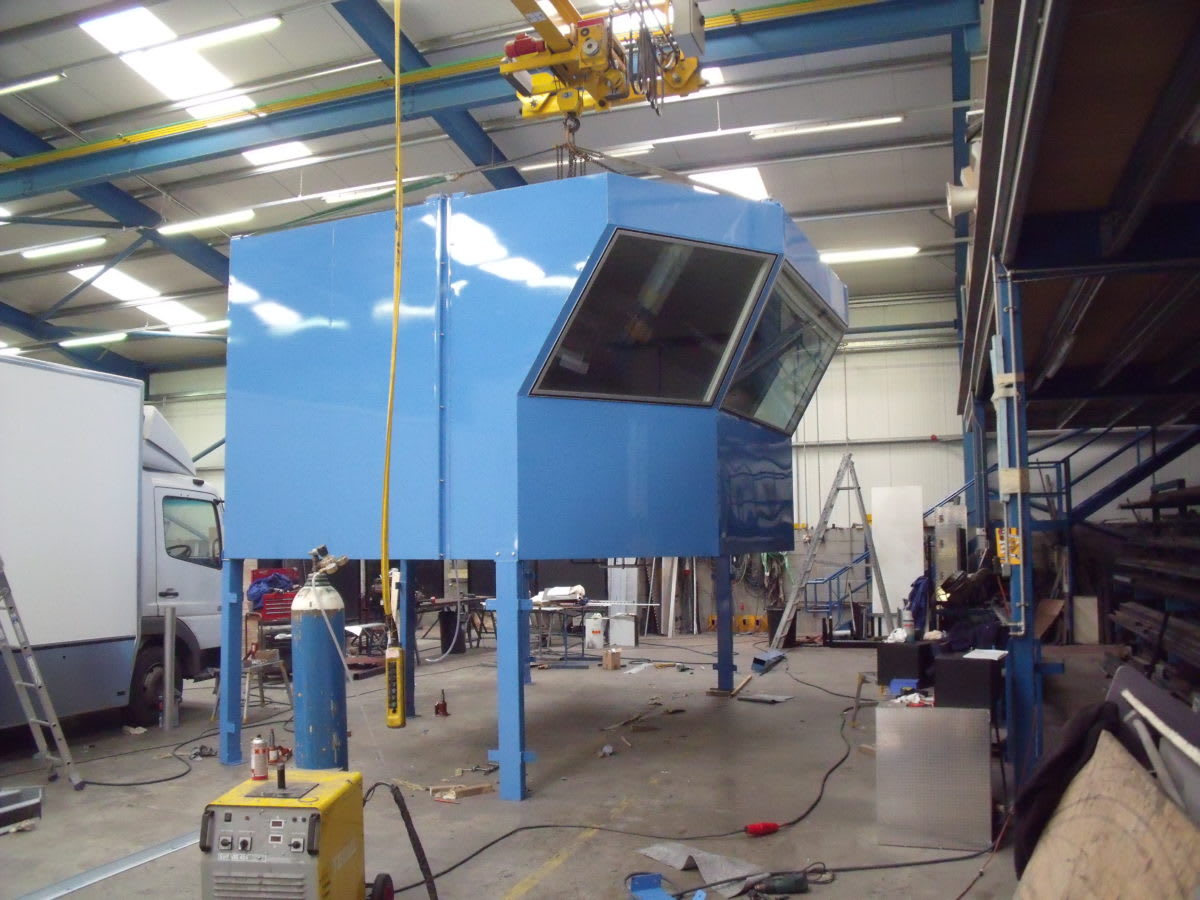

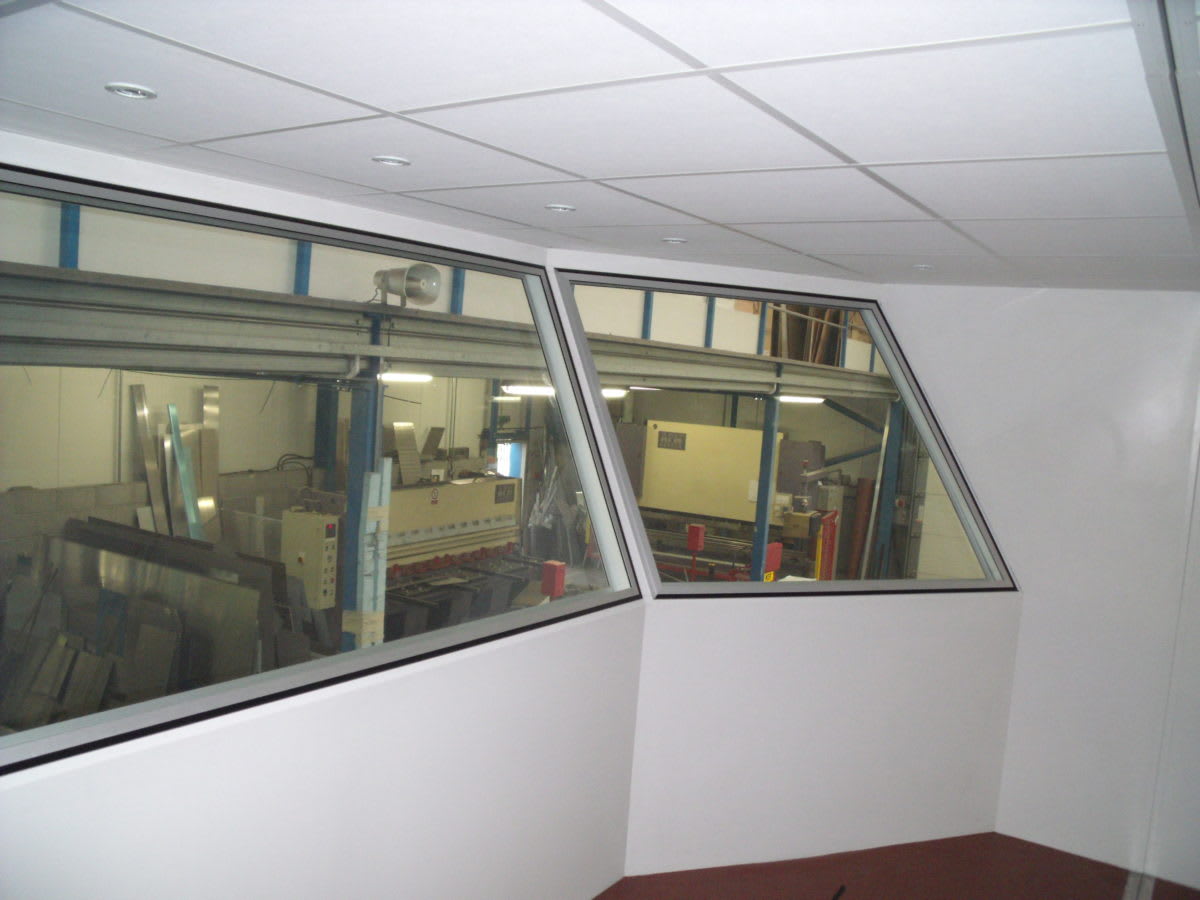

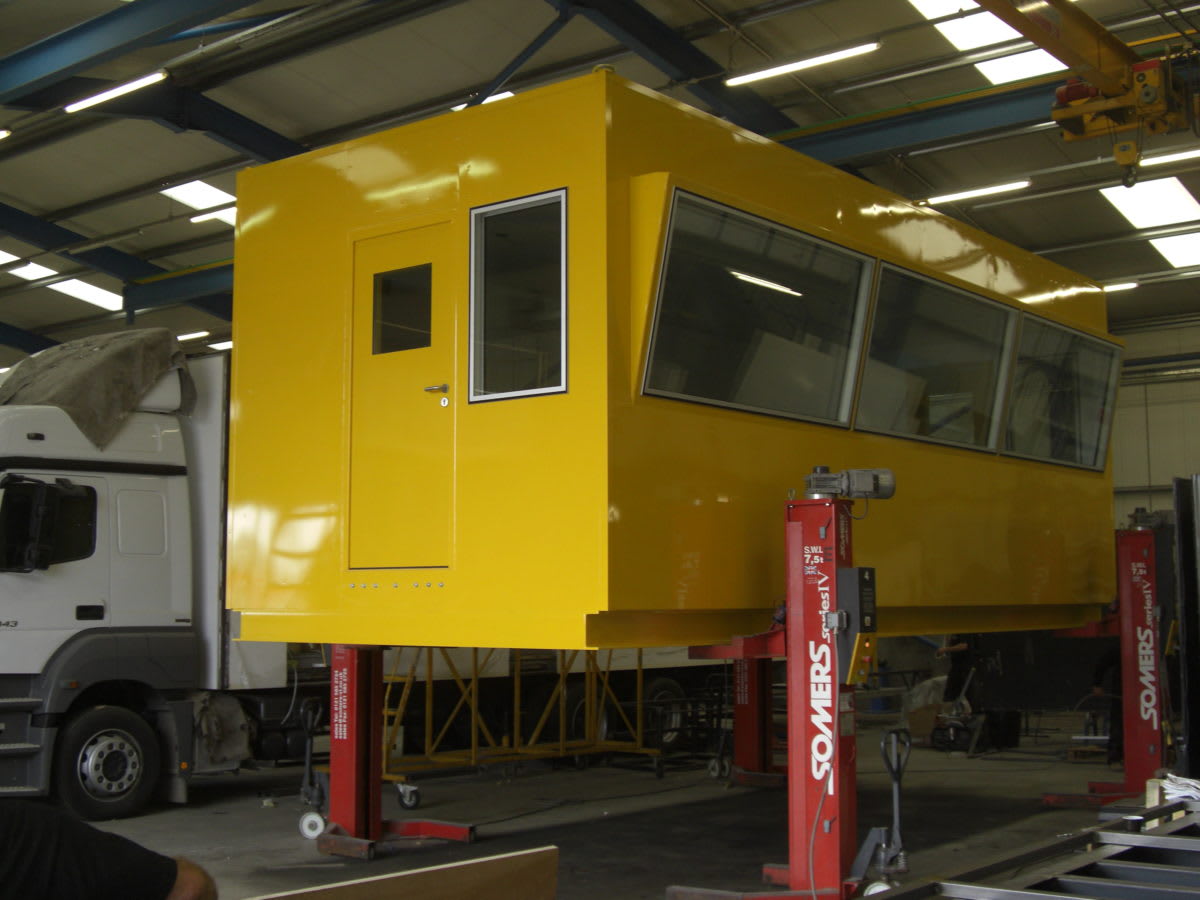

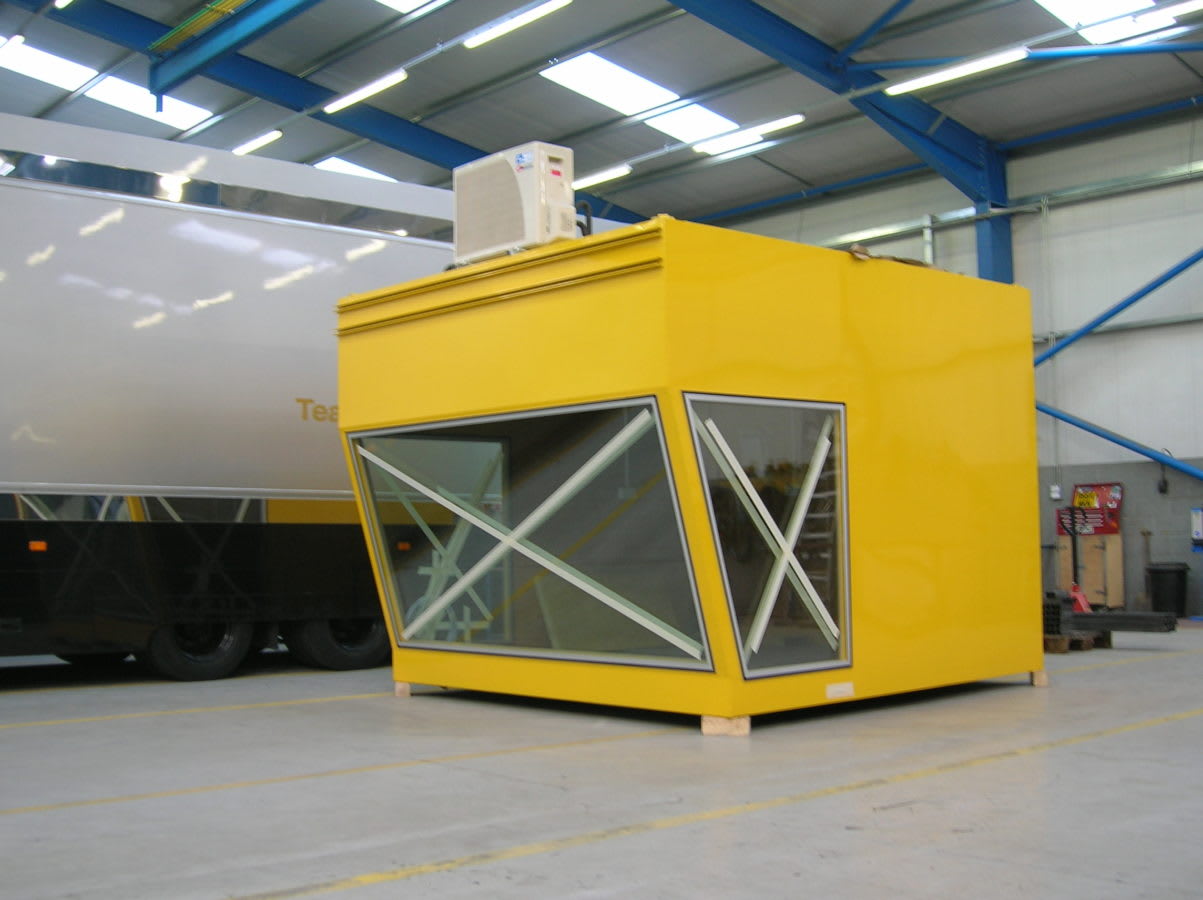

AEC2-2   -   Acoustic Control Room for a Steel Pipe Mill - fitted out and on its way to provide a plug-in solution. AEC2-1   -   Acoustic Control Room prior to despatch from our works. AEC2-3   -   Interior of Acoustic Process Control Room with raked glazing. AEC2-4   -   Raised Acoustic Control Pulpit for an aluminium sheet production plant. AEC2-5   -   Interior of Acoustic Control Room with acoustic ceiling, recessed lighting and raised access floor. AEC2-6   -   Operator Control Room for an aluminium mill - this unit has full height, raked windows and a fold-down, roof mounted air conditioning unit.

Acousticabs Acoustic Control Rooms are individually designed to suit specialist applications - operator control pulpits in steel mills, process control offices in chemical plants, quality inspection rooms for continuous process industries.

Typically the control rooms combine high levels of noise reduction with excellent visibility and a fully fitted out interior.

For most applications, the acoustic rooms are fabricated and substantially fitted out off site so that they can be delivered by truck and craned into position with the minimum of downtime.

Features include

  • Composite steel acoustic panel construction with different levels of performance in the range 30 dB to 50 dB.
  • A fully welded structural frame incorporating lifting/hold down lugs.
  • Associated steelwork - base frame/legs/ stairs.
  • Angled glazing (double or triple)
  • Perforated or heavy duty fabric faced acoustic wall paneling to the interior.
  • Class A acoustic ceiling with inbuilt lighting and emergency lights.
  • Routes for data and power cabling.
  • Raised computer flooring with inbuilt power points.
  • Air Conditioning with roof mounted or remote AC Units
  • Access/product sampling points to suit particular requirements.
