Perforated Acoustic Wall Panels - RC50 Perforated Acoustic Panel

PWP1-2 - RC50MP perforated acoustic panels on a curved wall

Examples

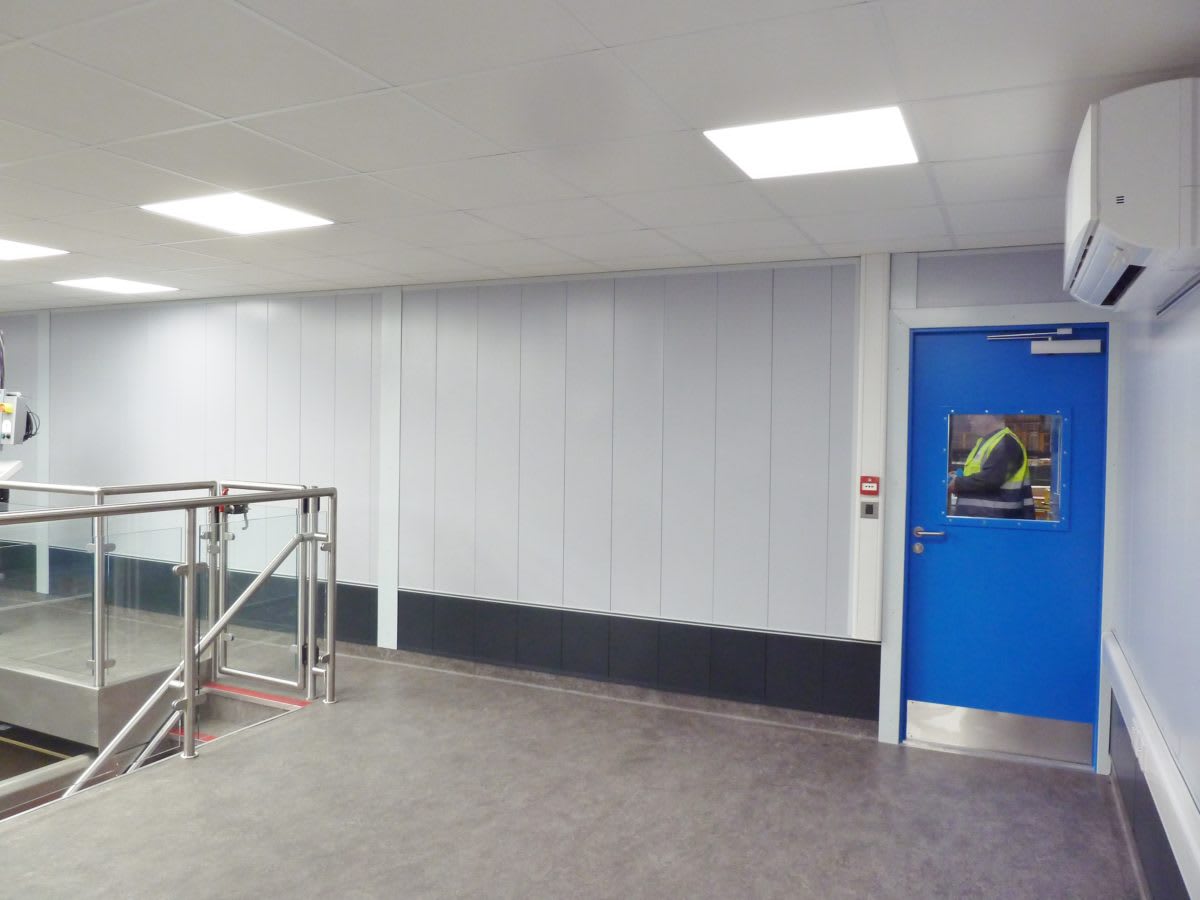

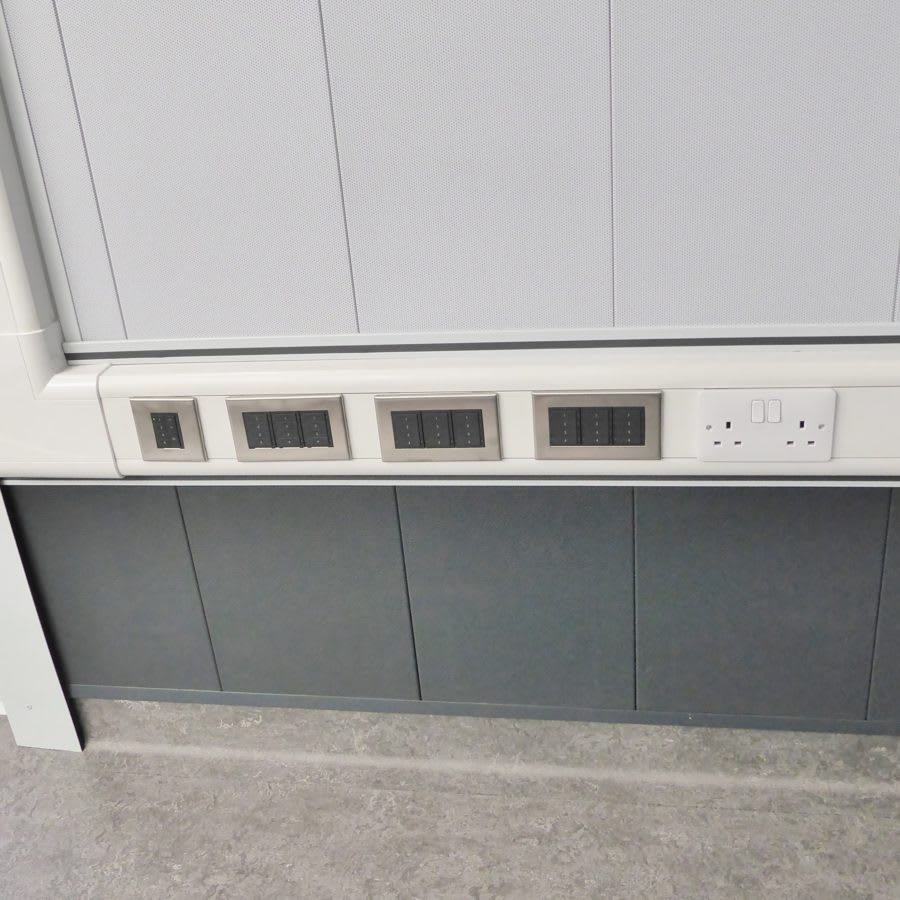

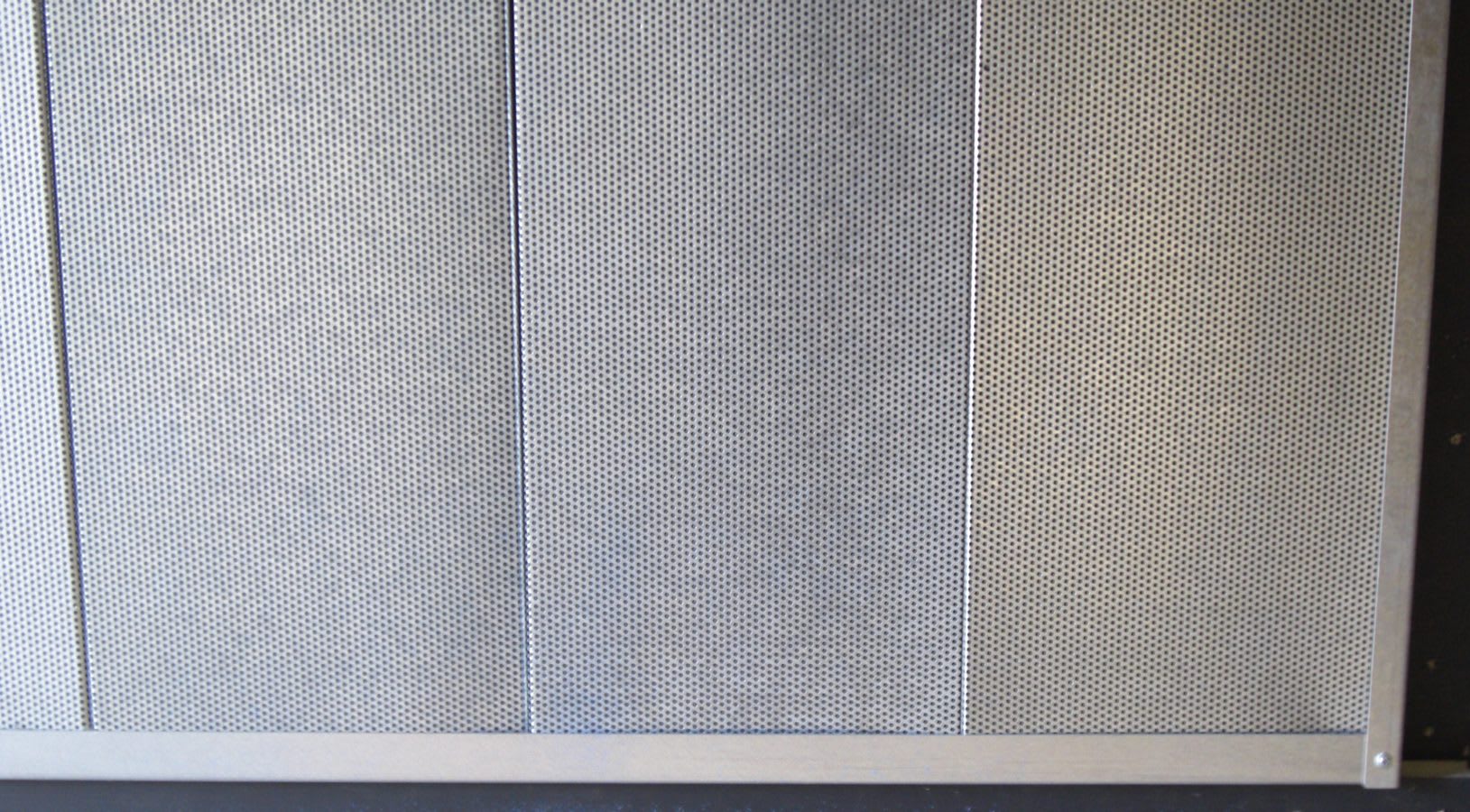

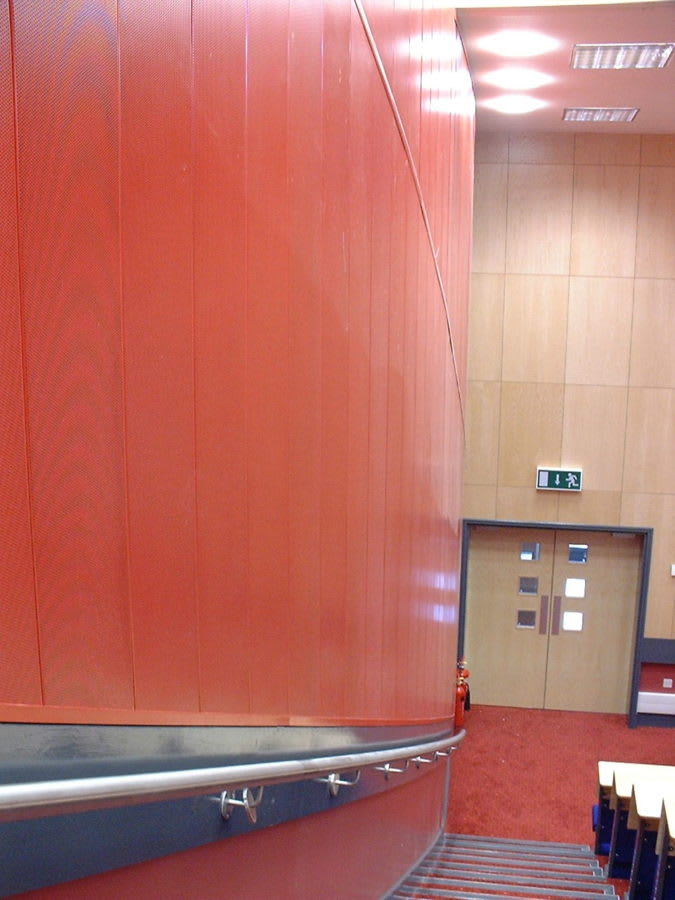

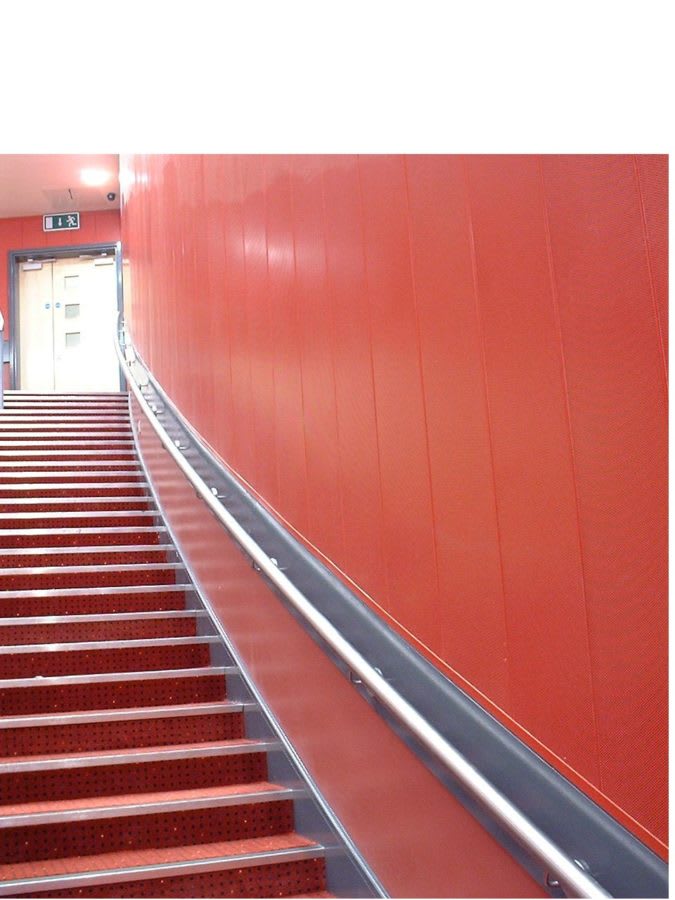

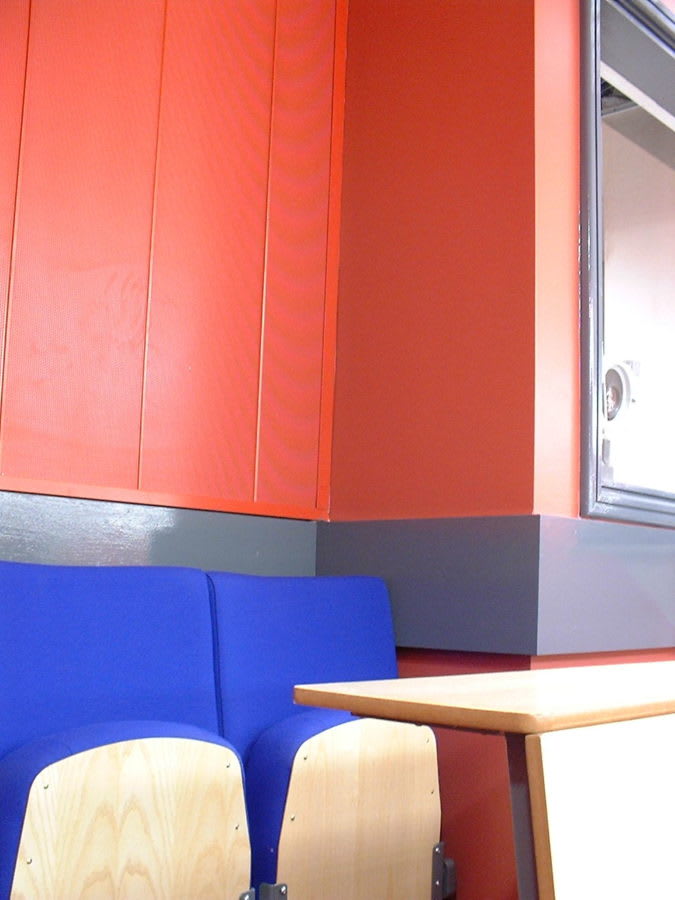

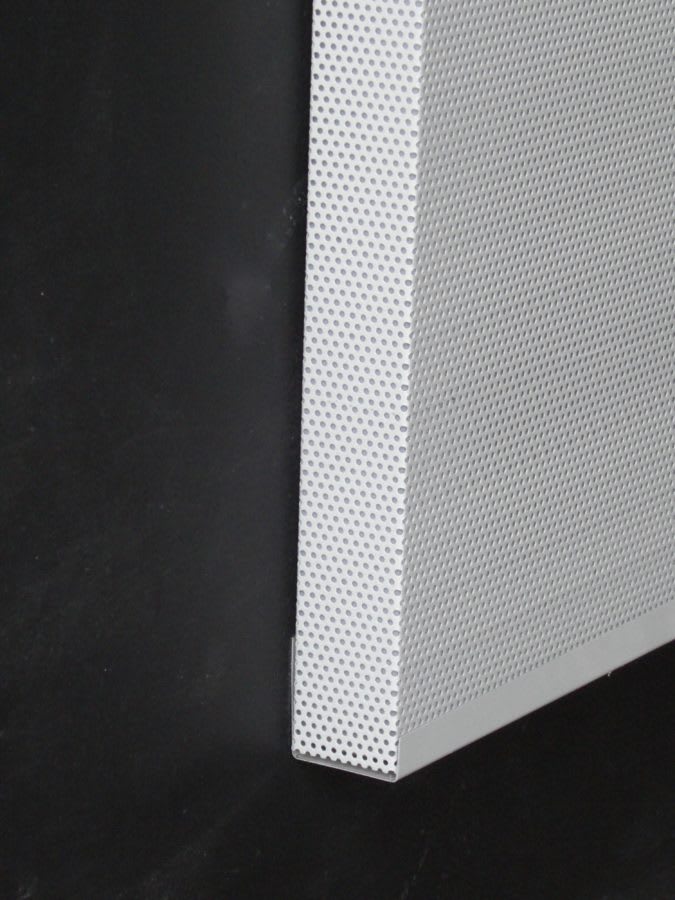

PWP1-2   -   RC50MP perforated acoustic panels on a curved wall PWP1-3   -   RC50 perforated acoustic panels PWP1-4   -   RC50 perforated acoustic panels PWP1-1   -   RC50MP acoustic wall panels - corner detail with aluminium trim PWP1-5   -   FRC50 acoustic panel - edge detail PWP1-6   -   RC50MP perforated acoustic panels

Acousticabs perforated wall panels are designed for lining walls where a robust finish needs to be combined with a high level of acoustic performance.

Type RC50MP panels have a powder-coated micro-perforated steel or aluminium finish giving a very high standard of appearance. RC50MP panels are suitable for use in offices, lecture theatres and schools.

Type RC50 panels have a standard perforated steel finish in pre-coated or galvanised steel. RC50 acoustic panels are used in corridors, plant rooms and around noisy machinery. RC100 panels are used where enhanced low frequency performance is required.

All panels consist of a perforated steel outer casing fitted around a Class A noise absorbing core. The core materials is a dense acoustic mineral fibre with a black acoustic fleece. FRC panels have a core of lightweight Acoustifoam. Panels are normally installed upright. Vertical edges are butt jointed. Panels are retained with a channel or zed section at head and base.


The noise absorption coefficient for Type RC panels is given below, measured in accordance with ISO 354 (Reverberant Room Method). The performance for type FRC panels is similar.

Hertz: 125 250 500 1K 2K 4K Abs Class
RC50 0.17 0.62 0.95 0.94 0.95 1.00 A
RC100 0.49 0.84 1.00 0.91 0.96 0.89 A

All components of the system are rated Class 0 under UK Building Regulations.

All panels are edge B (butt jointed on long edges)

Sizes:RC50300 x 2400 x 50
 RC50600 x 1200 x 50
 RC100600 x 1200 x 100
 FRC50600 x 1200 x 50
 FRC50300 x 2400 x 50
Other sizes to order.

RC50MP and FRC50MP: Powder-coated perforated steel or aluminium with dark perforations

RC50 and RC100: Galvanised or grey pre-coated perforated steel with dark perforations

Other pre-coated colours - see 'Pre-coated Colour Range'.

All panels can be wet cleaned. Panels with optional encapsulated core can be high pressure cleaned
