Acoustic Baffles and Rafts - TBS Baffle

ABR1-1 - TBS Acoustic Baffles with a white steel frame in a university lecture room

Examples

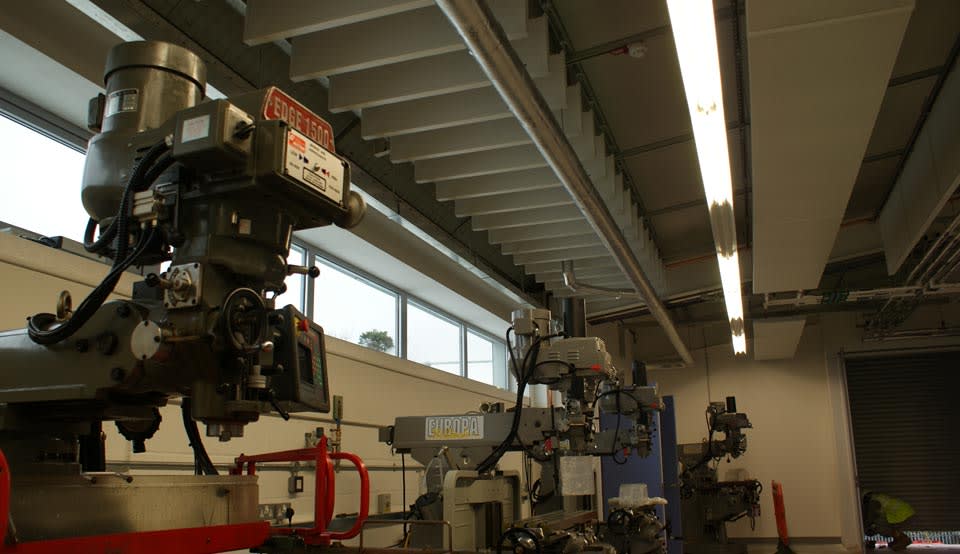

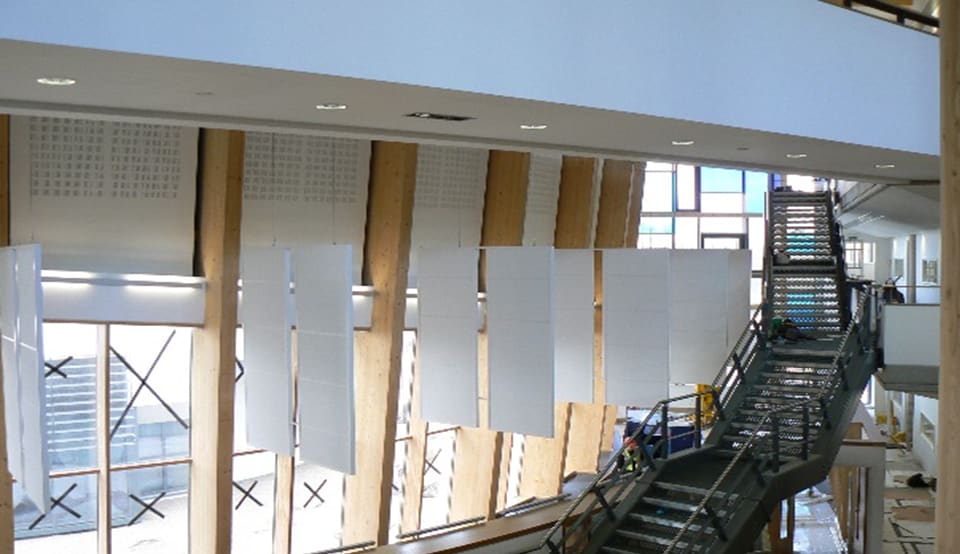

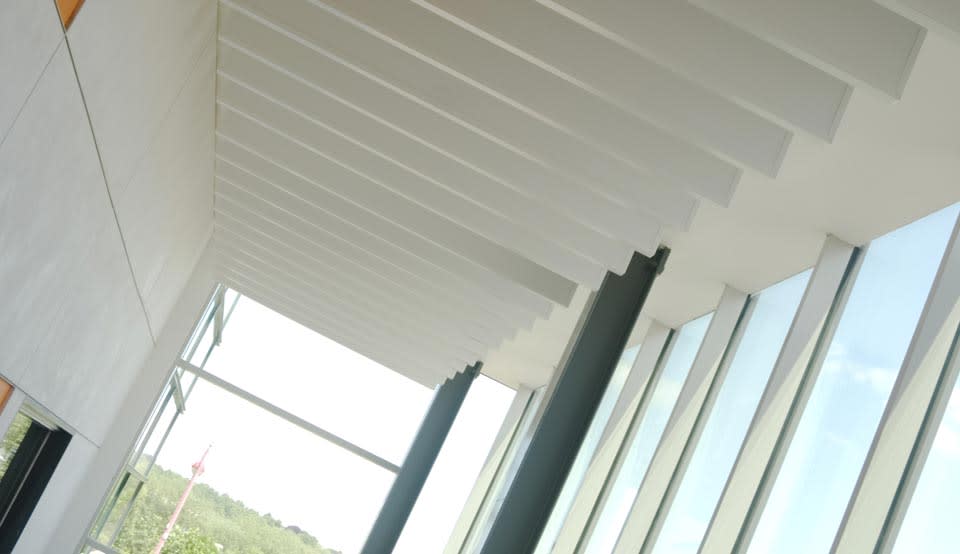

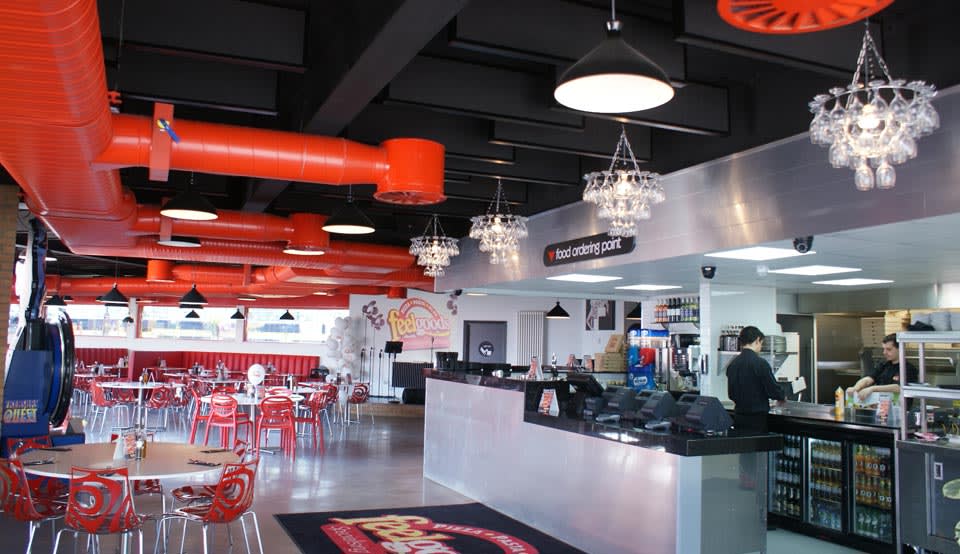

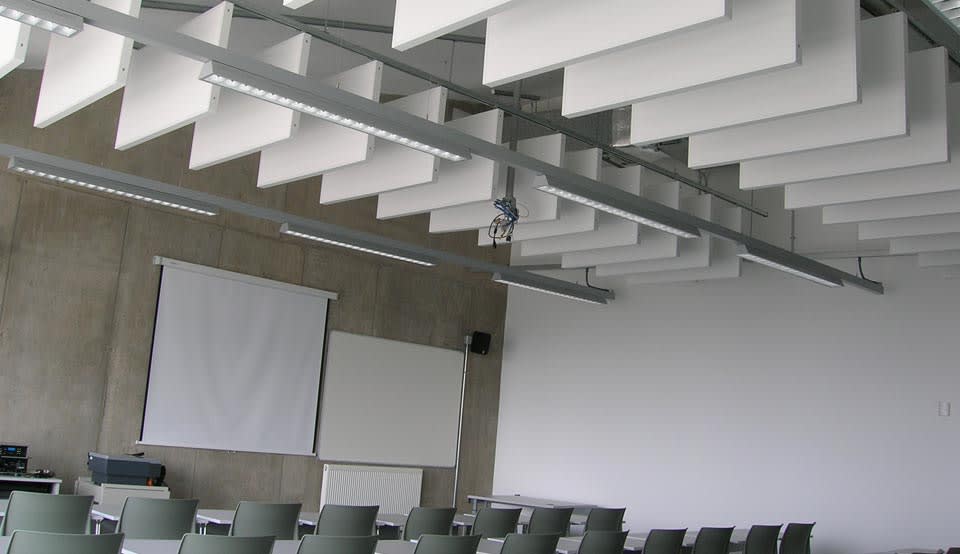

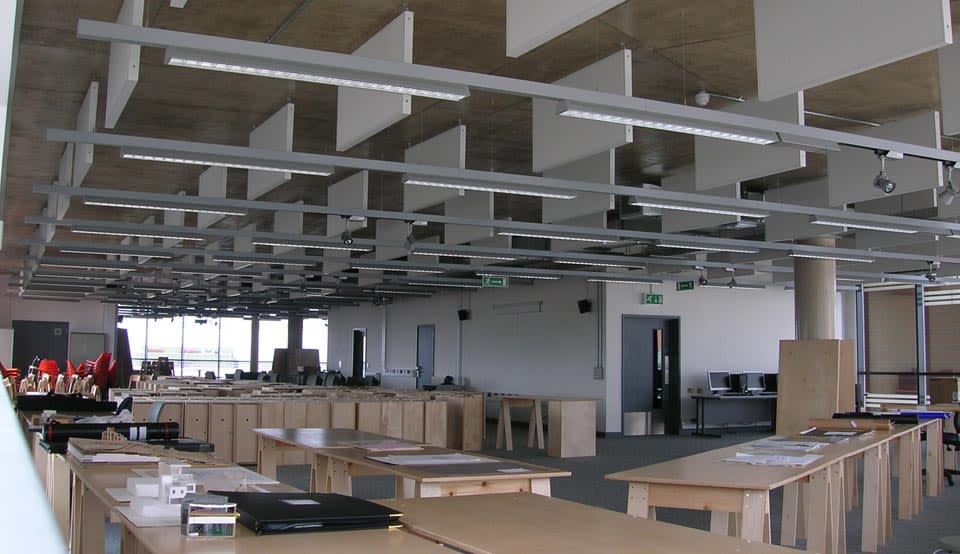

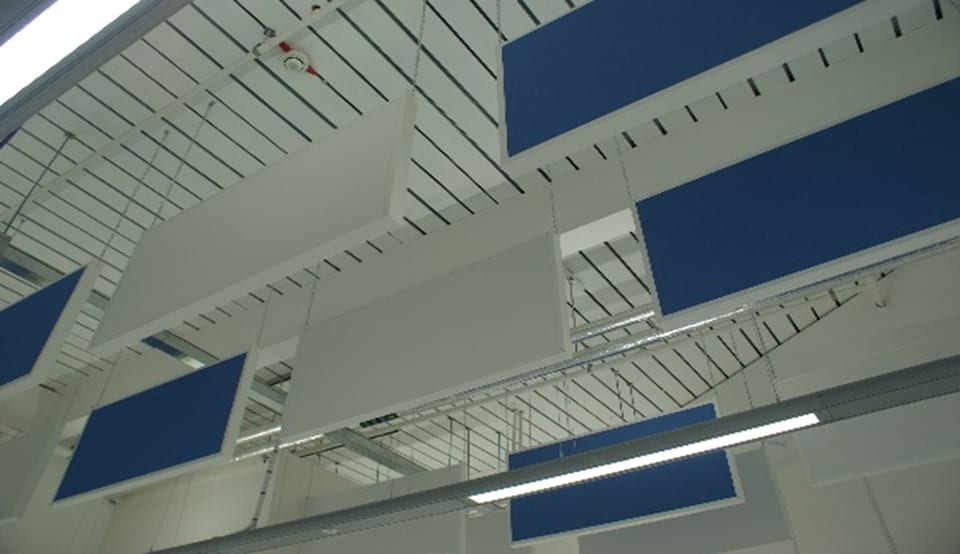

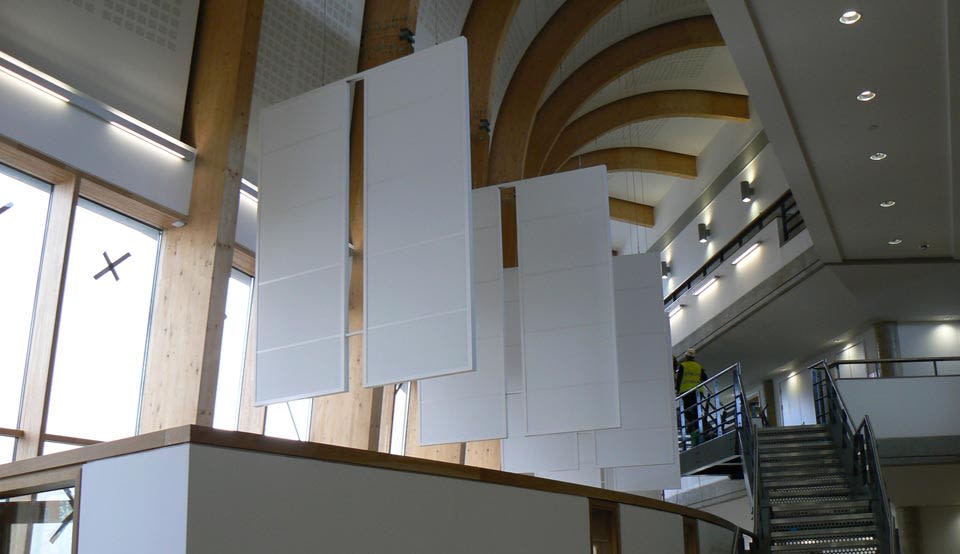

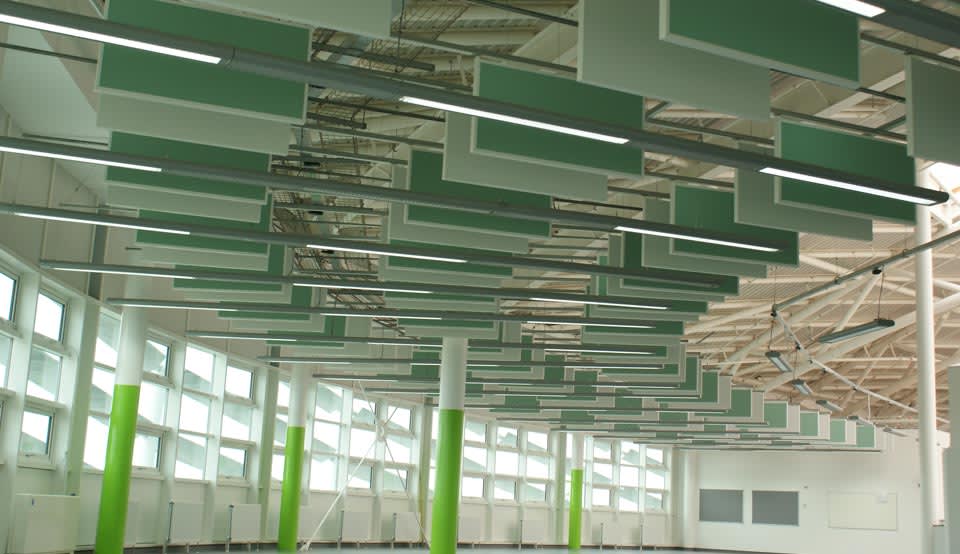

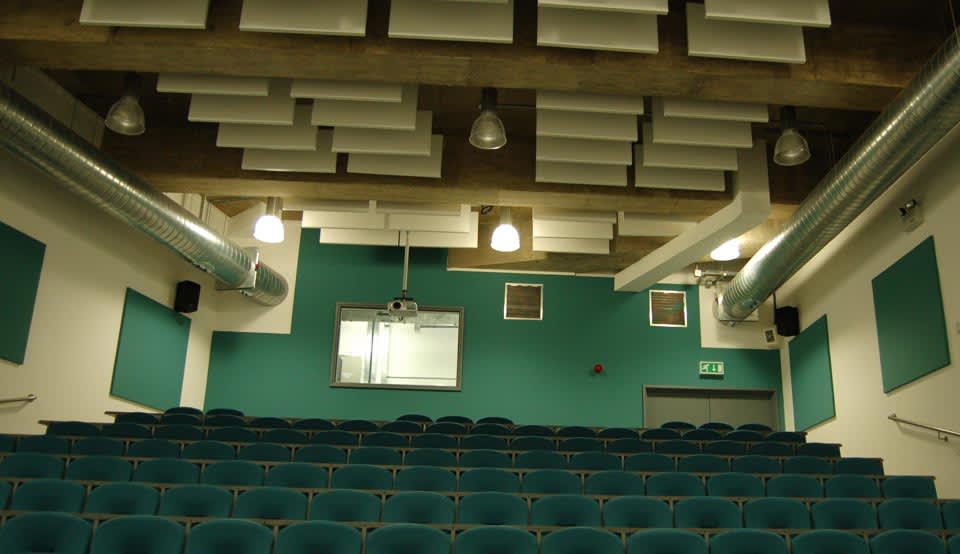

ABR1-1   -   TBS Acoustic Baffles with a white steel frame in a university lecture room ABR1-2   -   TBS Acoustic Baffles are manufactured with a wide choice of colours for the face and frame ABR1-3   -   White TBS Acoustic Baffles are used in this atrium linking two Victorian buildings ABR1-4   -   TBS Acoustic Baffles installed form a concealed Unistrut support rail spanning the atrium ABR1-5   -   Black TBS Acoustice Baffles 300 x 1200 in a Pizzaria ABR1-6   -   TBS Acoustic Baffles Installed in a school. 12 different shades from the TBS Colour Range were used to support colour themes for different subjects ABR1-7   -   Multi-coloured TBS Acoustic Baffles installed in a school. ABR1-8   -   TBS Acoustic Baffles in Black, white and blue. White TBS/HD Acoustic panels are wall mounted in the background. ABR1-9   -   Acoustic treatment in a university architecture department with TBS Acoustic Baffles. TBS Acoustic Baffles are frequently installed below concrete thermal mass ceilings. ABR1-10   -   TBS/W Acoustic Baffles with a white painted finish ina school technology room ABR1-11   -   TBS Acoustic Baffles installed in a lecture theatre. The green fabric acoustic panels on the walls use the Stretch Acoustic system. ABR1-14   -   TBS Acoustic Baffles 300 x 1800 spanning a corridor ABR1-15   -   Acoustic Baffles are a good way of adding sound absorption to a crowded soffit space. The picture shows TBS Baffles 300 x 1200 in a laboratory ABR1-16   -   Extra large TBS Acoustic Baffles are manufactured with an aluminium frame and are assembled on site. ABR1-18   -   Tbs Acoustic Baffles fixed to a suspended Unistrut grid system. ABR1-19   -   TBS Acoustic Baffles with a type 1 TBS frame including threaded inserts for height adjustment and spacers to keep all gaps even. ABR1-20   -   TBS Acoustic Baffles 600 x 1200, Frame type 1, installed from soffit brackets

TBS Acoustic Baffles are used to control reverberation and reduce noise levels in all types of building. In many sizes and a range of 46 colours, they can transform the acoustic and aesthetic environment of schools, open plan offices and large public spaces. In industrial locations they are easily installed around existing services and are effective in reducing long reverberation times in high roofed buildings. All TBS Baffles are 44mm thick, apart from the special slim TBS/Y Baffle which is only 30mm thick

TBS Acoustic Baffles consist of pre-finished TBS panels framed with pre-coated steel channel. The TBS core - a resilient, highly noise absorbent acoustic rockfibre - is finished with a smooth pre-painted acoustic tissue available in the full TBS colour range. The strong perimeter frame is available in a variety of colours, and make baffles easy to handle - so they are quick to install and easy to remove if required. Special aluminium framed versions are available for potentially corrosive atmospheres (e.g. swimming pools) or hygienic applications


The noise absorption coefficient is given below, measured in accordance with ISO 354 (reverberant room method).

Equivalent Absorption Area per Baffle (m2)

Hertz:1252505001K2K4K
TBS Baffle 44mm
300 x 12000.100.200.500.70 0.70 0.70
600 x 12000.150.450.951.201.201.15
TBS/Y Baffle 30mm
300 x 12000.150.300.701.151.201.15

TBS Baffles are composed of incombustible materials. They meet the highest international standards for ceiling products including Class O under the UK Building Regulations.

TBS Acoustic Baffles are resistant to 100% humidity and can be installed in newly constructed buildings before they are fully weathertight.

  • TBS Baffle

  • 600 x 1200 x 44
  • 300 x 1200 x 44
  • 300 x 1500 x 44
  • 300 x 1800 x 44
  • TBS/W

  • 600 x 1200 x 44
  • 300 x 1200 x 44
  • TBS/Y Baffle

  • 600 x 1200 x 30
  • 300 x 1200 x 30

TBS Baffles are available in a range of 46 TBS colours and a wide range of frame colours. See colour charts for details. TBS/W and TBS/Y Baffles are only available in white.

The TBS Baffle face is a smooth acoustic tissue incorporating a paint binder. The finish is suitable for vacuum cleaning, brushing or dabbing with a sponge. The TBS/W Baffle face has a white paint finish applied to the surface allowing the baffles to be wet cleanable.
