SG Sport Panel
SG01

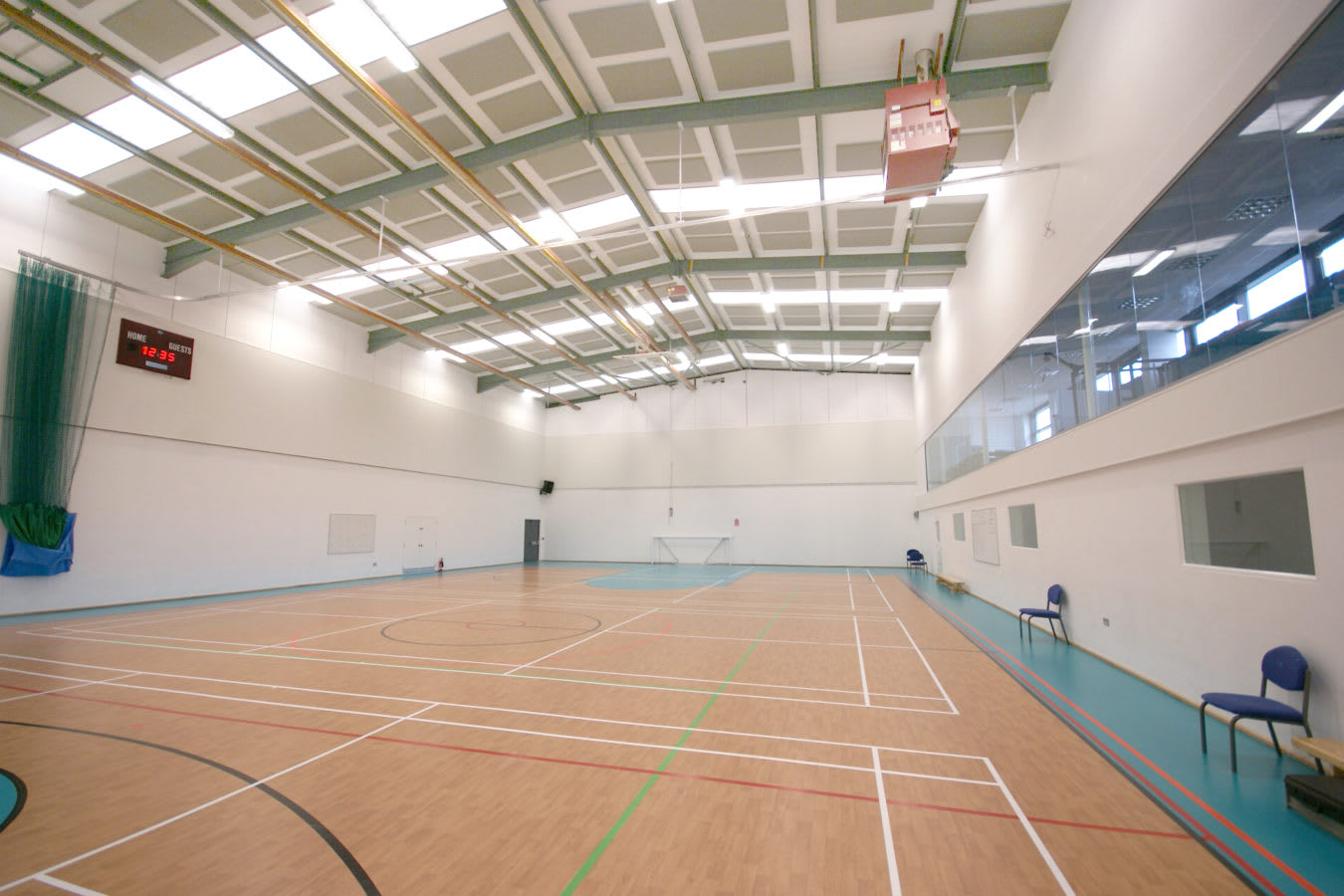

Sports Hall with white SG Sport Acoustic Wall Panels
SG02

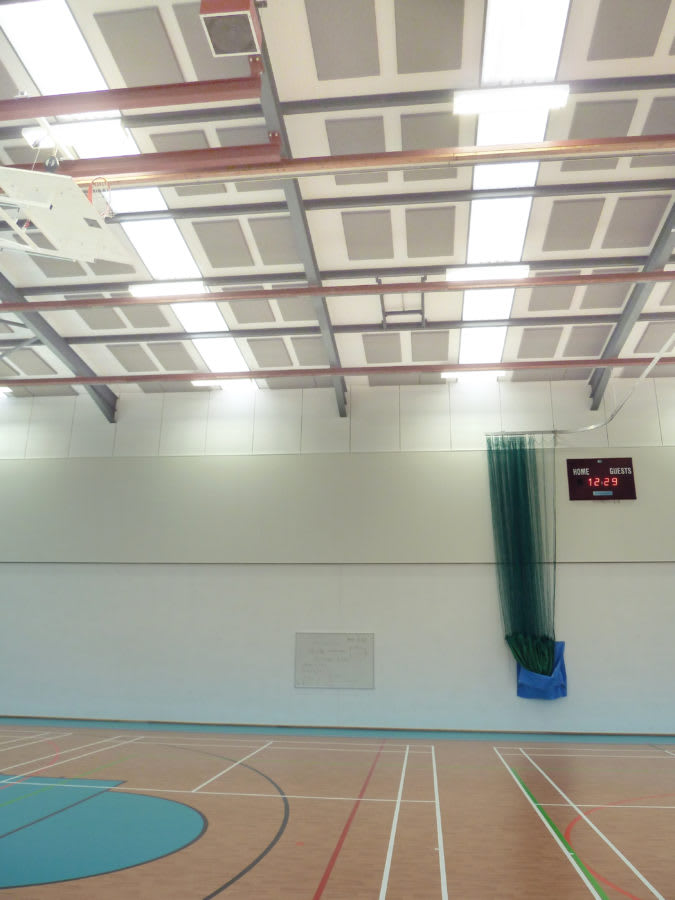

SG/C Sport Panels to Sports Hall walls with Acoustifoam modules direct to roof
SG03

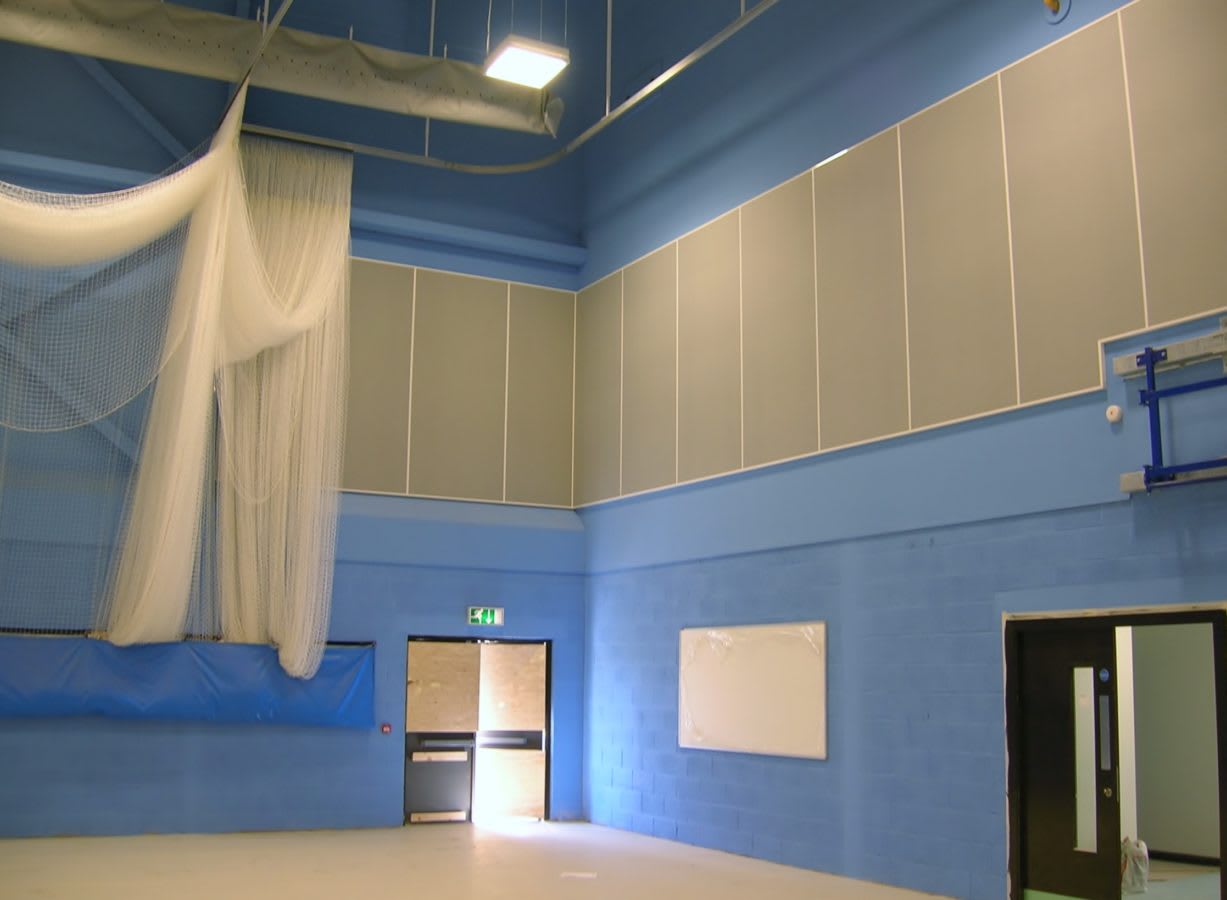

SG/A Sport Panels with contrasting joints.
SG04
Sports Hall with SG/A Sport acoustic panels in grey.
SG05
Sports Hall with high level SG/C Sport Panels.
SG06

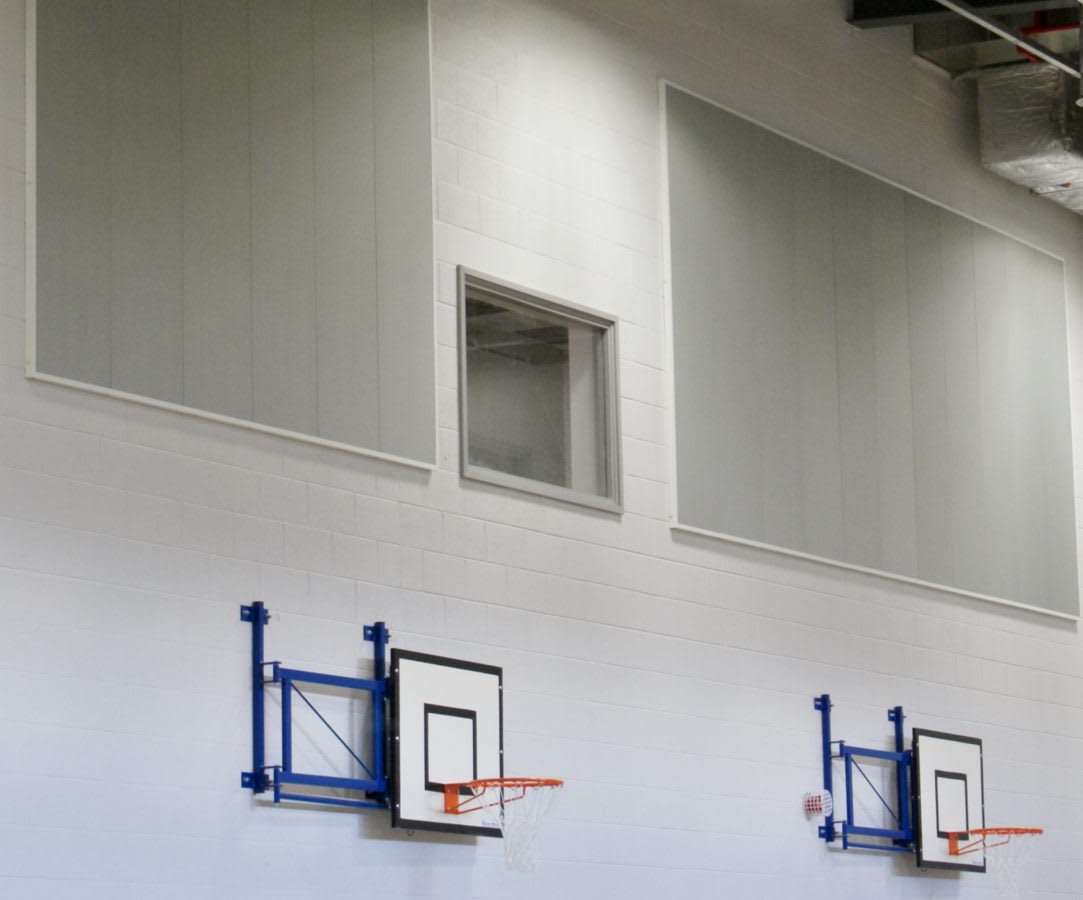

SG/C Sport acoustic panelling fitted in blocks above basketball hoops
SG07

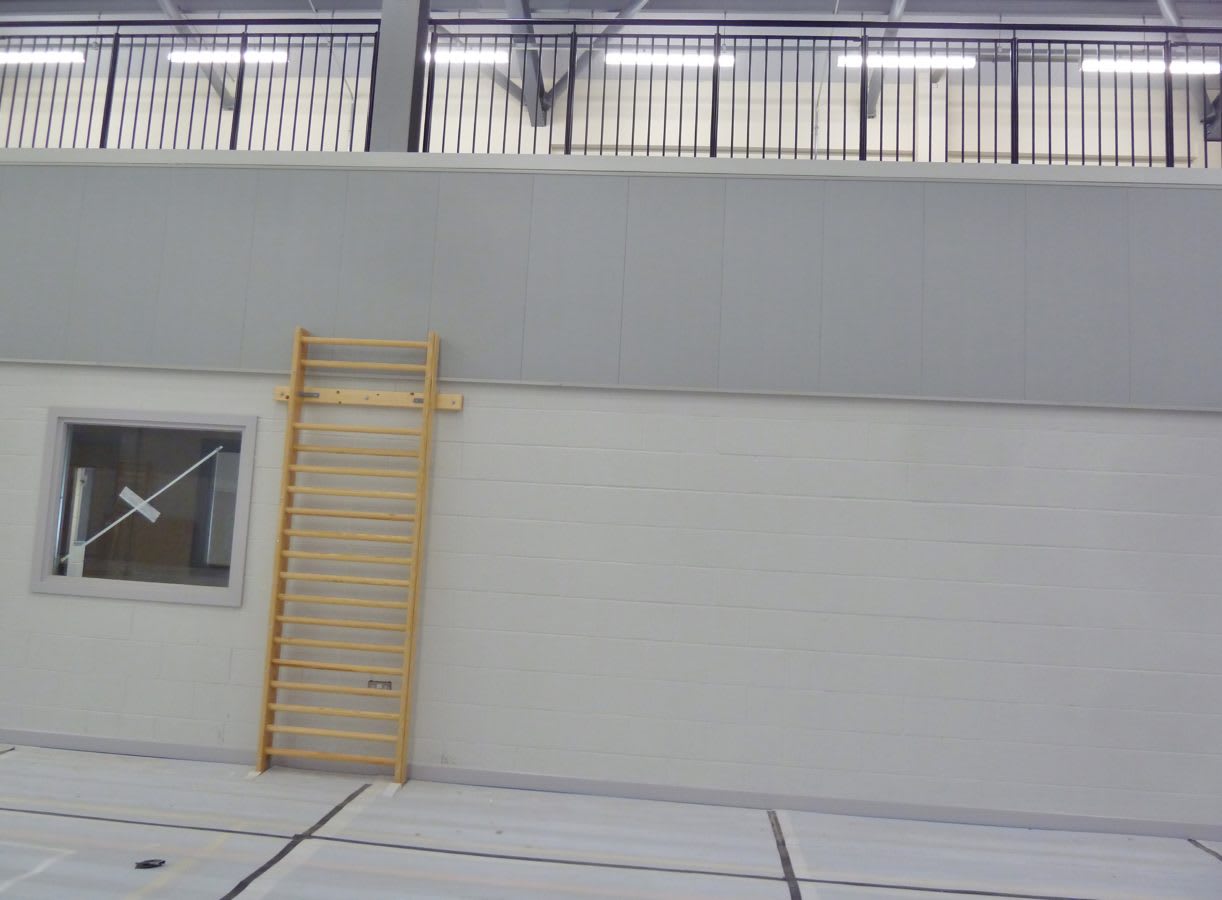

SG/C Sport Panels trimmed around basketball goals
SG08

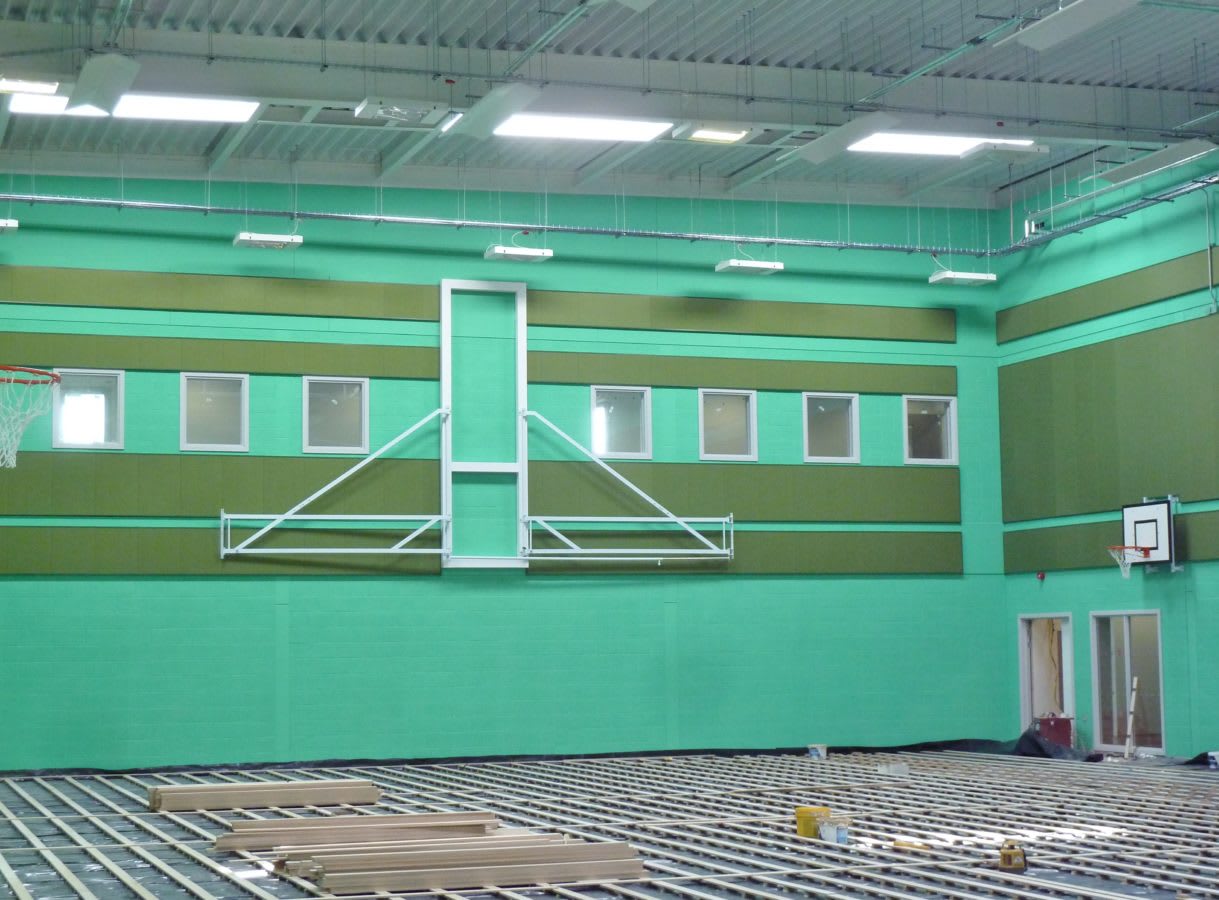

Sports Hall with full acoustic treatment using SG/C Sport panels in green.
SG09

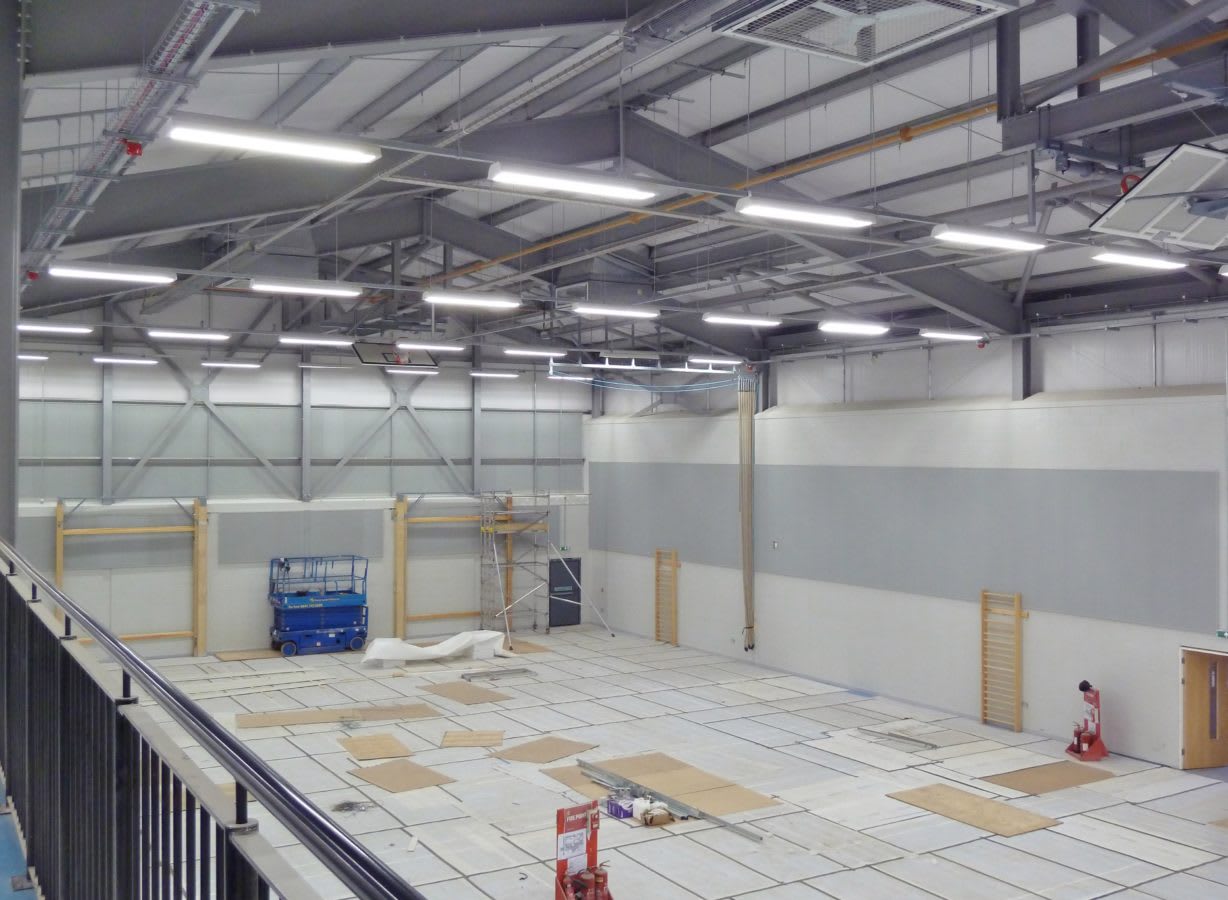

Installation of Acoustic Treatment to Sports Hall with SG/C Sport Panels
SG10

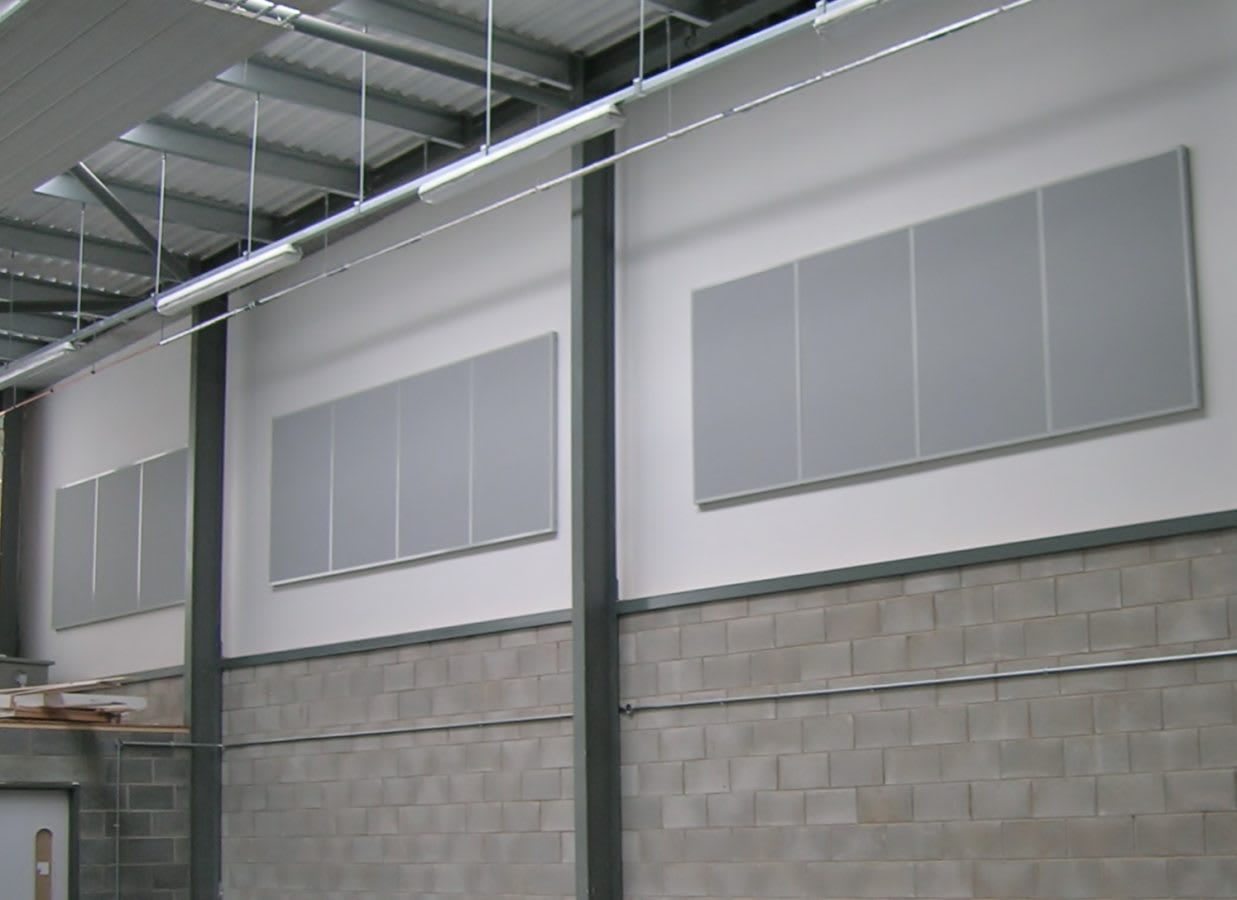

SG/A Sport Panels used for acoustic treatment of a training workshop.
SG11

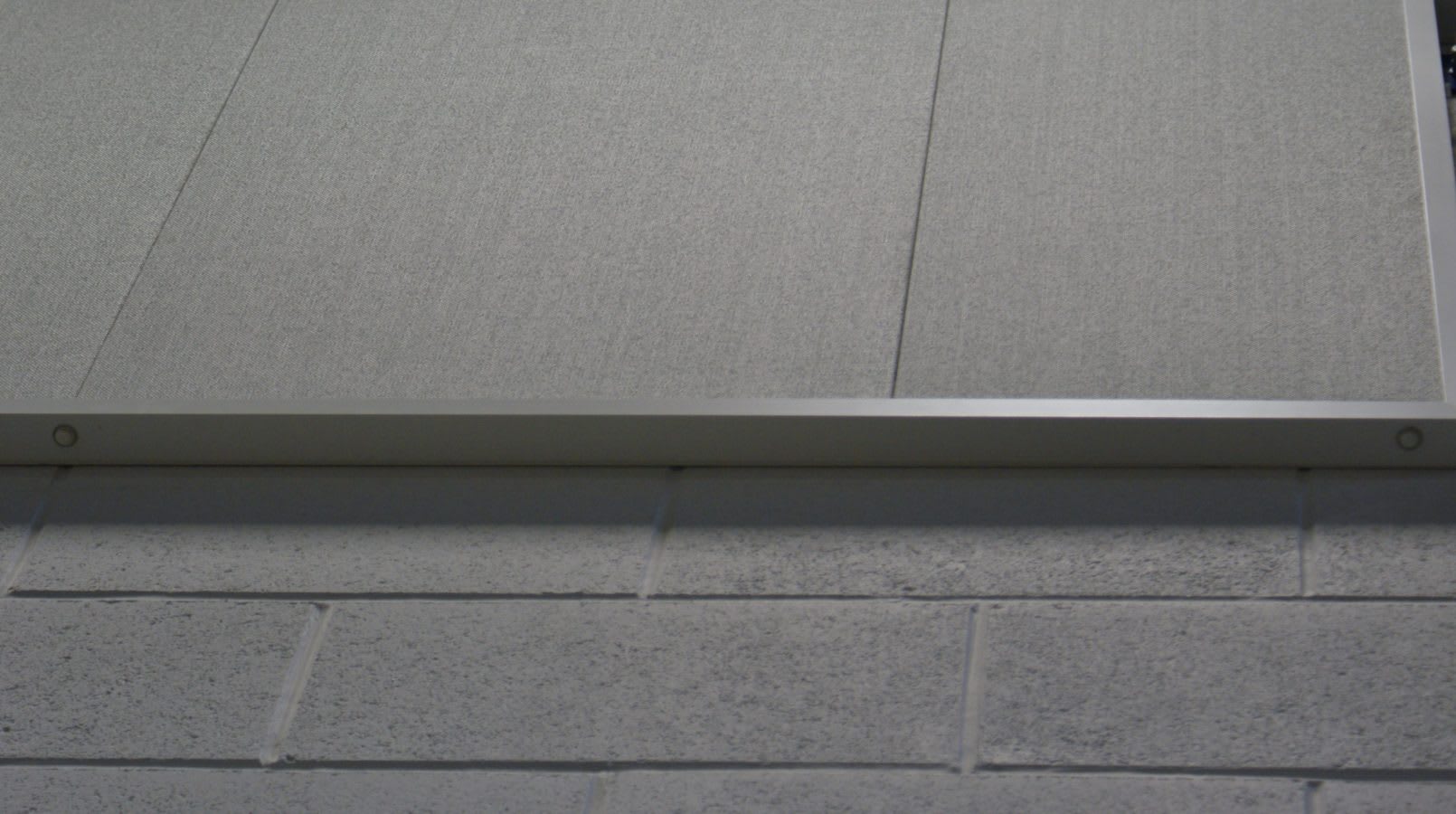

SG/C Sport Panels are butt jointed when fitted to Sports Hall walls.
SG12

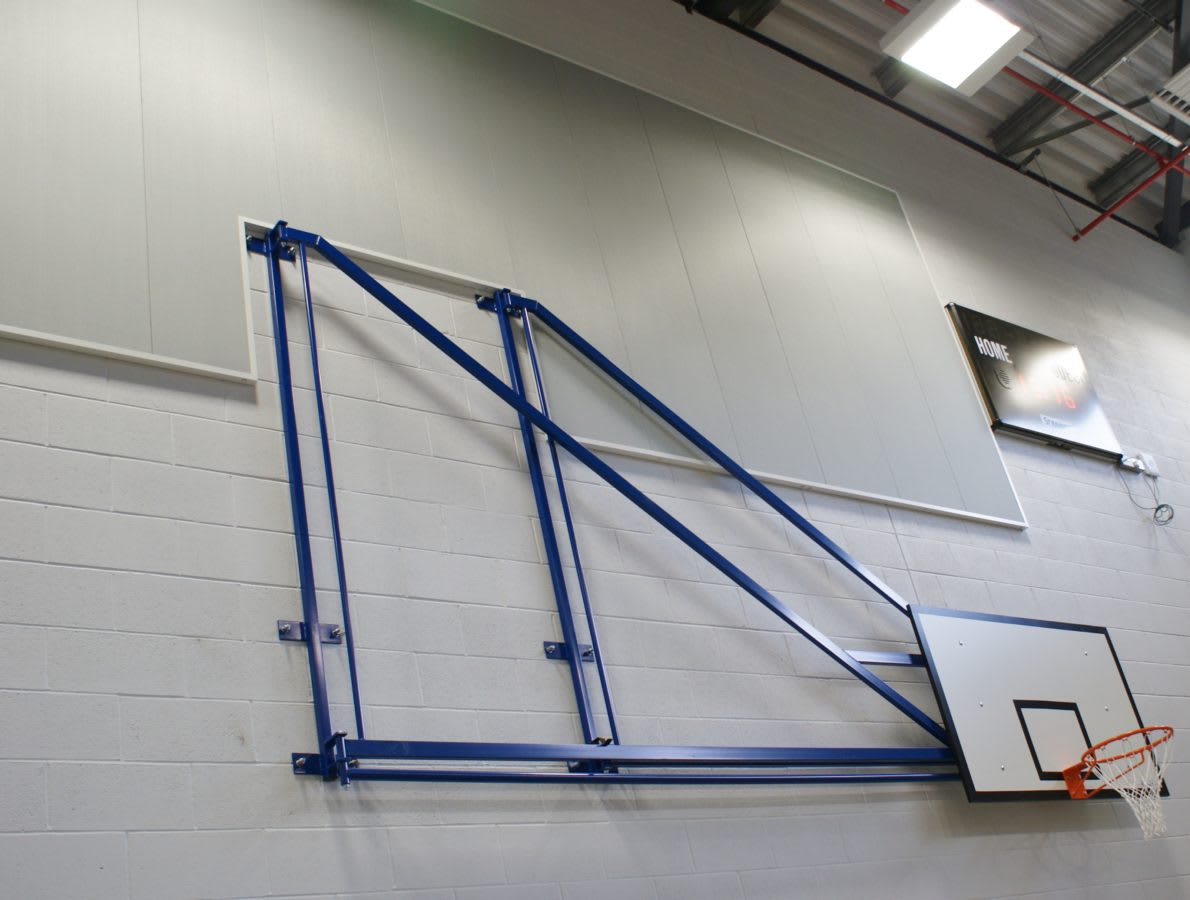

SG/C Sport Panels with basketball match goals
SG Sport panels are designed for the acoustic treatment of Sports Halls and other areas where an attractive but very tough Class A acoustic finish is required. They are suitable for use where high energy sports are played – eg football, basketball – as well as less demanding environments.
In sports halls, SG Sport panels are fitted to wall areas (generally above door height) either as a continuous lining, or in a series of blocks located between sports equipment.
SG Sport panels are also suitable for installation directly to the underside of sports hall ceilings or as a continuous suspended ceiling.
Panels consist of a dense, resin bonded acoustic fibre core with a coloured woven textile facing giving outstanding resilience and durability.
The combination of acoustic performance with an attractive and tough face means that SG Sport panels can also be used in other areas such as schools, offices and light industrial zones.
Panels are available with two edge details-
SG/C Sport panels have reinforced bevelled edges and are installed with butt joints.
SG/A Sport panels have straight cut edges and are installed with vertical Tee bars.
Both panel types are installed within a wall mounted perimeter channel frame.
| Installation | Hertz: | 125 | 250 | 500 | 1K | 2K | 4K | Abs Class | |
|---|---|---|---|---|---|---|---|---|---|
| SG/A Sport | Direct | 0.15 | 0.65 | 1.00 | 1.00 | 1.00 | 1.00 | A | |
| SG/C Sport | Direct | 0.25 | 0.75 | 1.00 | 1.00 | 1.00 | 1.00 | A | |
| SG/A Sport | Suspended 200mm | 0.55 | 0.85 | 0.85 | 1.00 | 1.00 | 1.00 | A |
- BS476 pt 6 and 7 – rated Class O under UK Building Regulations
- Euroclass A2-S1-d0 (EN1350-1)
- SG/C Sport Panels have reinforced, fabric covered long edges.
- SG/A Sport Panels have a straight cut edges.
- SG/C Sport: 600x2700x40
- SG/A Sport: 1200x2700x40 and 600x1200x40
- SG/C Sport: white/grey/blue
- SG/A Sport: white
SG Sport meets Class 1A requirements (ie the highest category)
PDF Drawings and Datasheet
SG Sport Panel Data Sheet issue 7 2018 (PDF)
